Mounting Hardware Information for 1/2 and 1 Inch Cutting Edges

Mounting Hardware for 1/2" Cutting Edges

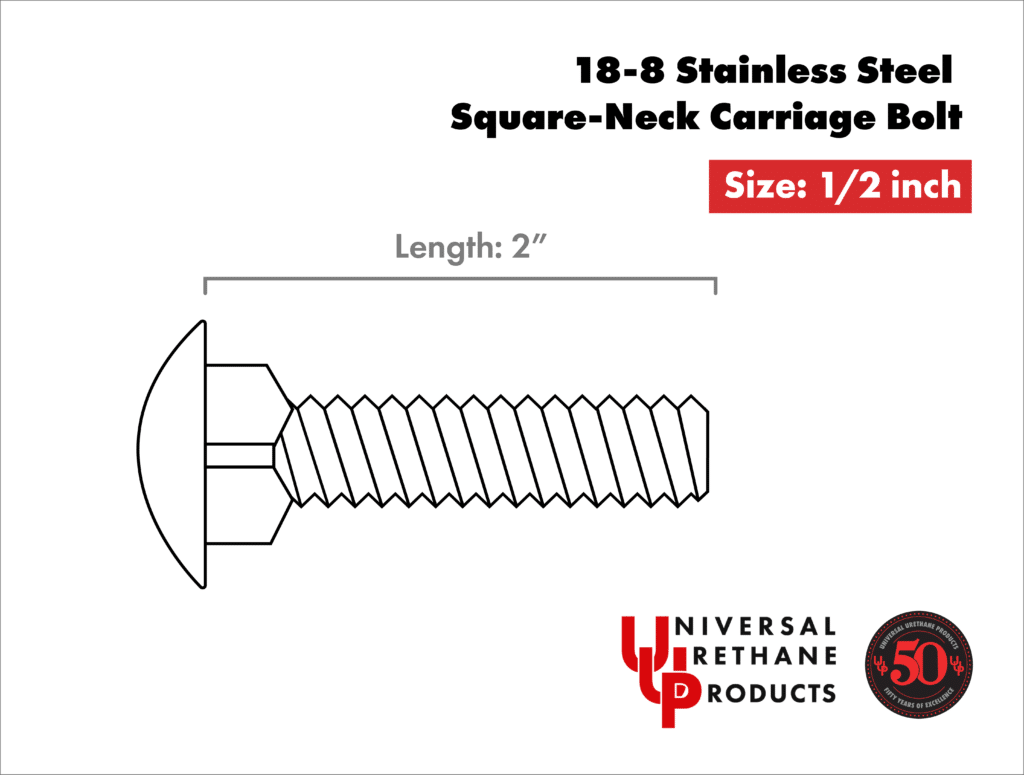

18-8 Stainless Steel Square-Neck Carriage Bolt

Made from 18-8 stainless steel, these bolts have good chemical resistance and may be mildly magnetic. A smooth, rounded head provides a finished look. Length is measured from under the head. Dimensions meet ASME B18.5 or DIN 603 specifications.

Head Type	Rounded
Thread Size	3/8"-16
Length	2"
Head
Diameter	0.844"
Height	0.208"
Material	18-8 Stainless Steel

Medium-Strength Steel Hex Nut

Grade 5, Zinc-Plated, 3/8"-16 Thread Size

Hex Nut Profile	Standard
Material	Zinc-Plated Steel
Thread Size	3/8"-16
Width	9/16"
Height	21/64"

316 Stainless Steel Washer

for 3/8" Screw Size, 0.406" ID, 0.75" OD

Material	316 Stainless Steel
For Screw Size	3/8"
ID	0.406"
OD	0.750"
Thickness	0.040" to 0.060"

Mounting Hardware for 1" Cutting Edges

18-8 Stainless Steel Square-Neck Carriage Bolt

Head Type	Rounded
Thread Size	1/2"-13
Length	2"
Head
Diameter	1.094"
Height	0.27"
Material	18-8 Stainless Steel

18-8 Stainless Steel Hex Nut

1/2"-13 Thread Size

Hex Nut Profile	Standard
Material	18-8 Stainless Steel
Thread Size	1/2"-13
Width	3/4"
Height	7/16"

18-8 Stainless Steel Washer

for 1/2" Screw Size, 0.531" ID, 1.25" OD

Material	18-8 Stainless Steel
For Screw Size	1/2"
ID	0.531"
OD	1.250"
Thickness	0.055" to 0.069"
